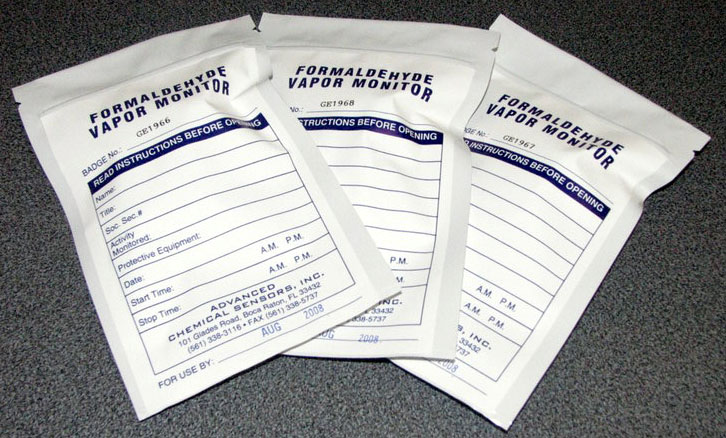

Formaldehyde Vapor Monitor (F-50)


SKU: F-50 Category:


The Formaldehyde Vapor Monitor can be used to measure personal exposure or room concentrations. This monitoring badge will be accepted in as accurate in any inspection or dispute, because it is validated for accuracy, and analyzed in an AIHA-LAP, LLC accredited laboratory.

Indoor Air Quality

For measurement of indoor air quality, The EPA and The American Lung Assoc. recommend a maximum level of 0.1 ppm. Some people may be sensitive to lower levels. The monitoring badge should be placed in the room for about 24 hours. Then it will be accurate at a level of 0.003 ppm (3 parts per billion). For a 48 hour exposure, the minimum level is even lower.

It is very easy to do the test. Expose the monitoring device in the area to be tested. The optimum exposure time is 24 hours. Return for analysis in the envelope provided. Results are available within 48 hours. The price includes the testing and written report.

Workplace Exposure

Measurment of personal exposure is very easy. Clip the monitoring badge near the breathing zone. Record the star time of the test. Return in to the laboratory in the mailer provided. Results are available in less than 48 hours.

OSHA Regulations

Each person who uses formaldehyde as a regular part of their job must have their exposure monitored periodically, according to OSHA regulations.

There are two conditions that must be met to comply with the OSHA Standards for personal exposure in the workplace. First, the concentration for an 8 hour period must be less than 0.75 ppm. Second, the maximum exposure during any 15 minute interval must be less than 2.0 ppm. There is also an “action level” at 0.5 ppm for an 8 hour period. Above the action level more frequent monitoring is needed to avoid the need for protective equipment and for medical testing.

The Formaldehyde Vapor Monitor meets OSHA accuracy requirements for both the full shift and short-term measurements.

Principle of Operation

Collection of formaldehyde vapor by diffusion in the monitor and collection on a chemical activated solid adsorbent. Analysis is done by methods validated for accuracy by The Occupational Safety & Health Administration (OSHA) and by The National Institute of Occupational Safety & Health (NIOSH).

Exposure Limits ACGIH OSHA EPA Indoor Air
TWA (ppm) N/A 0.75 0.1
STEL/CEIL (ppm) 0.3 2 N/A
Sampling Medium: 2,4-DNPH Coated High-Purity Silica Gel
Method of Analysis: High Pressure Liquid Chromatography
Reference Method: NIOSH Method 2016
Recommended Sampling Time: 15 minutes to 48 hours
Minimum Level of Quantitation: 0.1 0.3 micrograms pre sample
This is equivalent to 0.005 ppm for 8 an hour period.
0.3 ppm for 15 minutes
0.003 ppm for 24 hours
Interferences: Other aldehydes such as formaldehyde will not interfere.
Ketones will not interfere.
No interferences are known.
Effect of Temperature: Less than 10% for each 10 °C variation from 24 °C
Effect of Humidity: No effects detected at 30% RH to 92% RH.
Overall System Accuracy: Independent validation of accuracy has been done in 1999 and 2001 by Mitsubishi Chemical Lab under the supervision of the government of Japan.
16% at 0.75 ppm for 8 hours
20% at 2.0 ppm for 15 minutes
Storage Conditions: Maximum shelf life six months. No special storage is required. Refrigeration will extend shelf life. Best to store away from sources of formaldehyde vapor.
Recommended Holding Time: Two weeks prior to analysis.
Bulk Purchase

Quantity Discounts Apply
