Mercury Vapor Monitor (HG-10)


SKU: HG-10 Category:

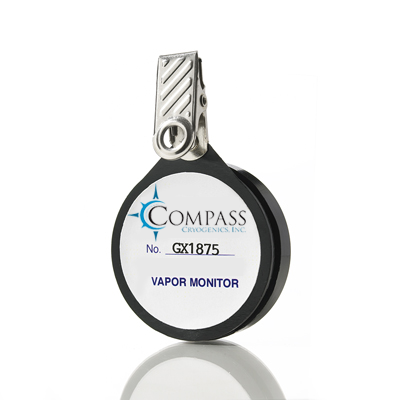

Compass Cryogenics Vapor Monitor can be worn as a badge near the breathing zone to measure personal exposure, or placed in a room to measure area concentration.

Occupational safety standards are based on personal exposure monitoring of each employee who may be exposed to the vapor as a regular part of their job. Periodic monitoring of personnel and room concentrations is recommended

[table td1=”Exposure Limits” td2=”ACGIH” td3=”OSHA” td4=”NIOSH”] [td1] TWA (ppm)[/td1] [td2]0.025[/td2] [td3]N/A[/td3][td4]0.05[/td4] [td1]STEL/CEIL (ppm)[/td1][td2]N/A[/td2] [td3]0.1[/td3][td4]0.1[/td4][/table]
Sampling Medium: Ultra High Purity Gold
Method of Analysis: Cold Vapor-Atomic Adsorption Spectrophotometer
Reference Method: OSHA Method ID-140
Recommended Sampling Time: 15 minutes to more than 24 hours
Minimum Level of Quantitation: 0.0005 mg/m3 for 8 hours
0.016 mg/m3 for 15 minutes
Interferences: No interferences are known.
Effect of Temperature: Less than 10% for each 10 °C variation from 24 °C
Effect of Humidity: No effects detected at 30% RH to 92% RH.
Overall System Accuracy: 10% at 0.025 mg/m3 for 8 hours
Storage Conditions: Maximum shelf life one year.
Recommended Holding Time: Two weeks prior to analysis.
